General features:
- The first device of its kind in the world, a metal detector and locator with high sensitivity and perfect quality
- The MF-90 uses PI pulse induction technology, allowing you to detect metals in water and in all types of soils.
- Streamlined and distinctive shape, small in size, light in weight and easy to use

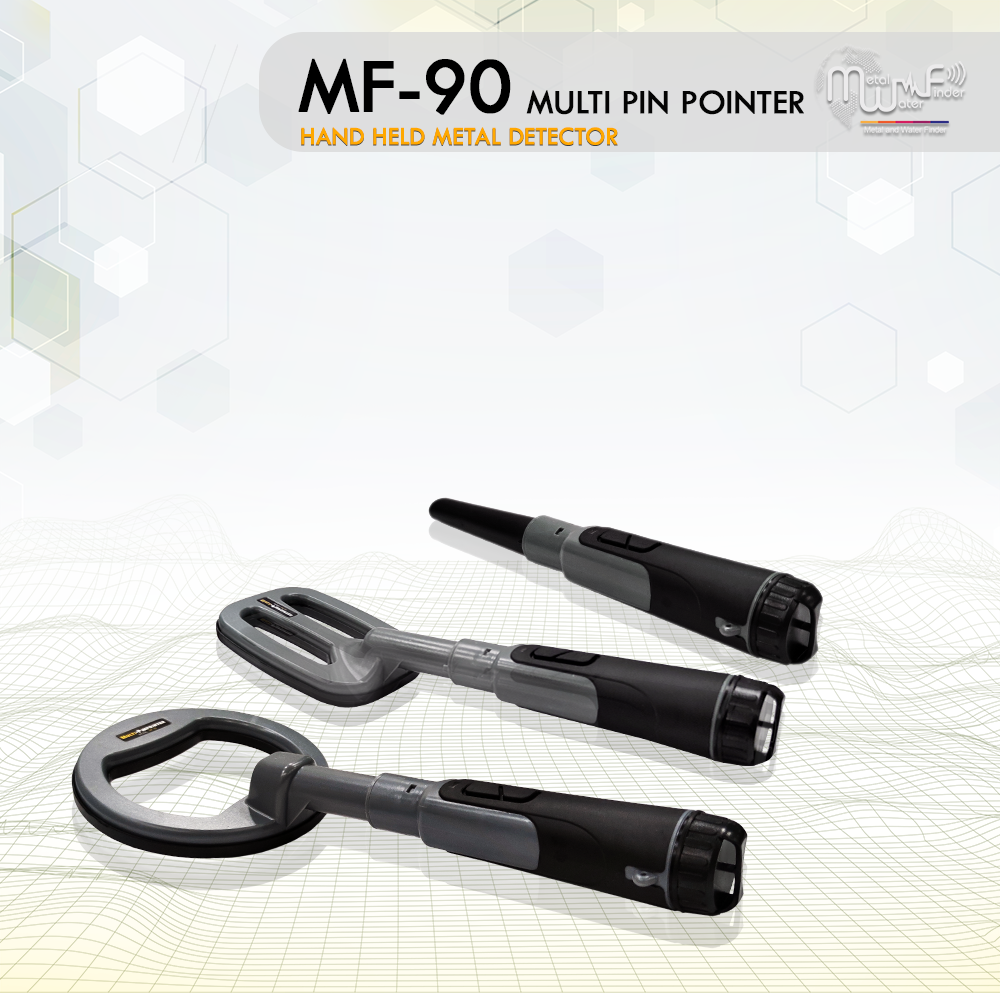

- It contains three search coils of different sizes that help you reach the narrowest and most difficult rugged areas
- It contains a coil with a slanted edge that allows you to detect in very narrow and rugged areas

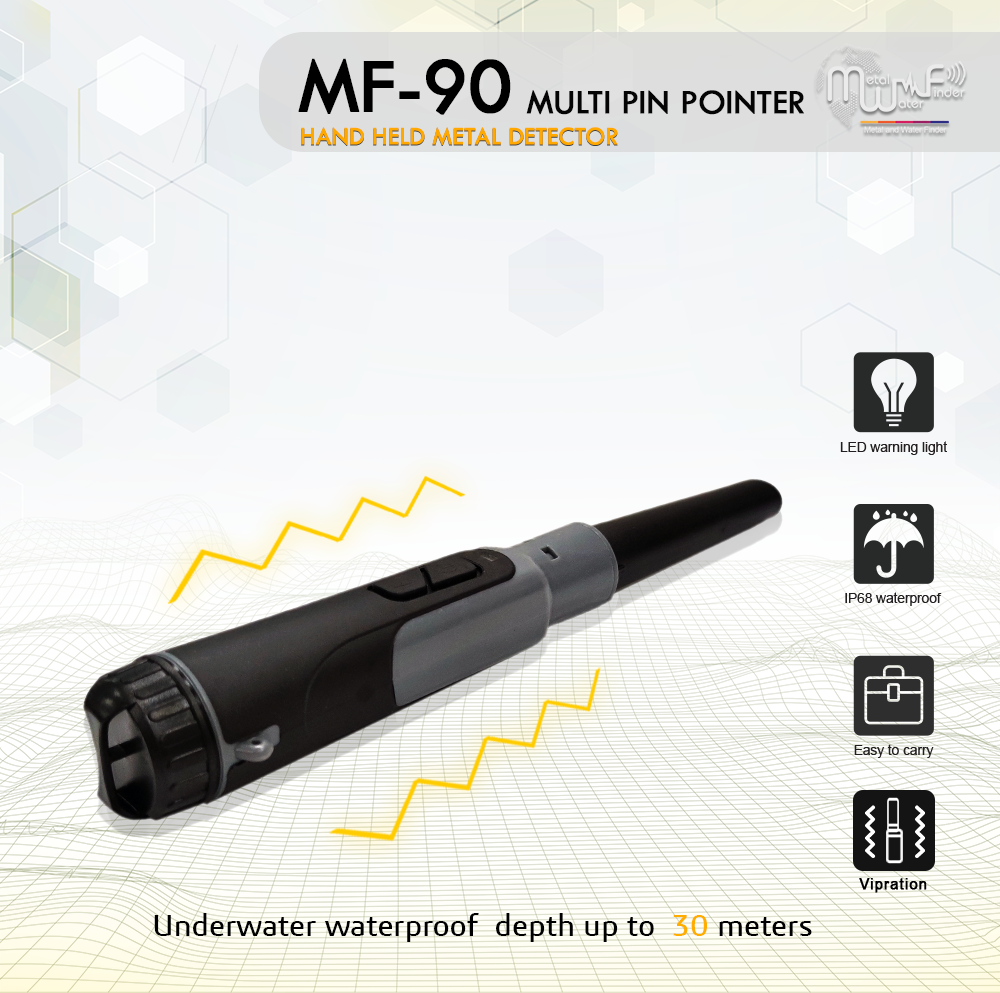

- The MF-90 has a standing of IP68 for waterproofing, where you can detect metals by diving at a depth of up to 60m underwater.
- The device is equipped with a USB Type C port, which enables you to use the power bank at any time.
- High capacity and low energy consumption, you can work for 10 days.
- It only takes two hours to charge the battery.
- The device contains sound and vibration alarm systems that interact with the size and proximity of the target.
- Light in weight, 370 grams combined and 1360 grams fully in the bag
- The ability to reset and calibrate with a quick response and with one click
- Fast and immediate results, no need for analysis, waiting or follow-up.
- The ATS system automatically adjusts to all types of terrain, including rocky, mountainous, sandy and muddy soils.
- The device contains a flash light to work in poor or non-existent lighting conditions.
- The advanced microprocessor circuitry allows the MF-90 to work with the maximum possible sensitivity to detect metals.
- This device is made of the best plastics, electronic components and circuits with international standards.
- High precision and quality in manufacturing and performance, with a non-slip handle.
Applications
- The small size of the device helps in accessing search places that cannot be reached through another device.
- Search while diving up to 60 m
- Target detection speed and finding small metals with high accuracy
- Searching in narrow interior areas such as walls and ceilings
- It acts as a pointer to locate metal pipes, channels, rebar, etc.
- You can move around and travel with it wherever you want
Technical Specifications
Detection system: | PI pulse induction search system |
Detection principle: | A pulse of current is sent and received, processed (repeatedly) through a coil in the search head to detect metal. |
Operating processor: | MICROCONTROLLER |
The operating frequency | 18.2Khz |
Alarm type: | Interactive audible, vibrating alarms |
Power | 5-volt cell |
Power consumption: | the maximum consumption is 200mA |
Battery working hours: | 90 actual working hours |
Specialized in detecting: | Metals of all kinds |
Search distance: | Spot detection depends on the size of the target |
Operating temperature: | From -15°C to 55°C |
Storage temperature: | From – 15 °C to 50 °C |
Humidity: | It can be stored and operated at an average humidity level of 90%. |
Weight: | combined: 180g |
Dimensions: | 24cm x 5cm |

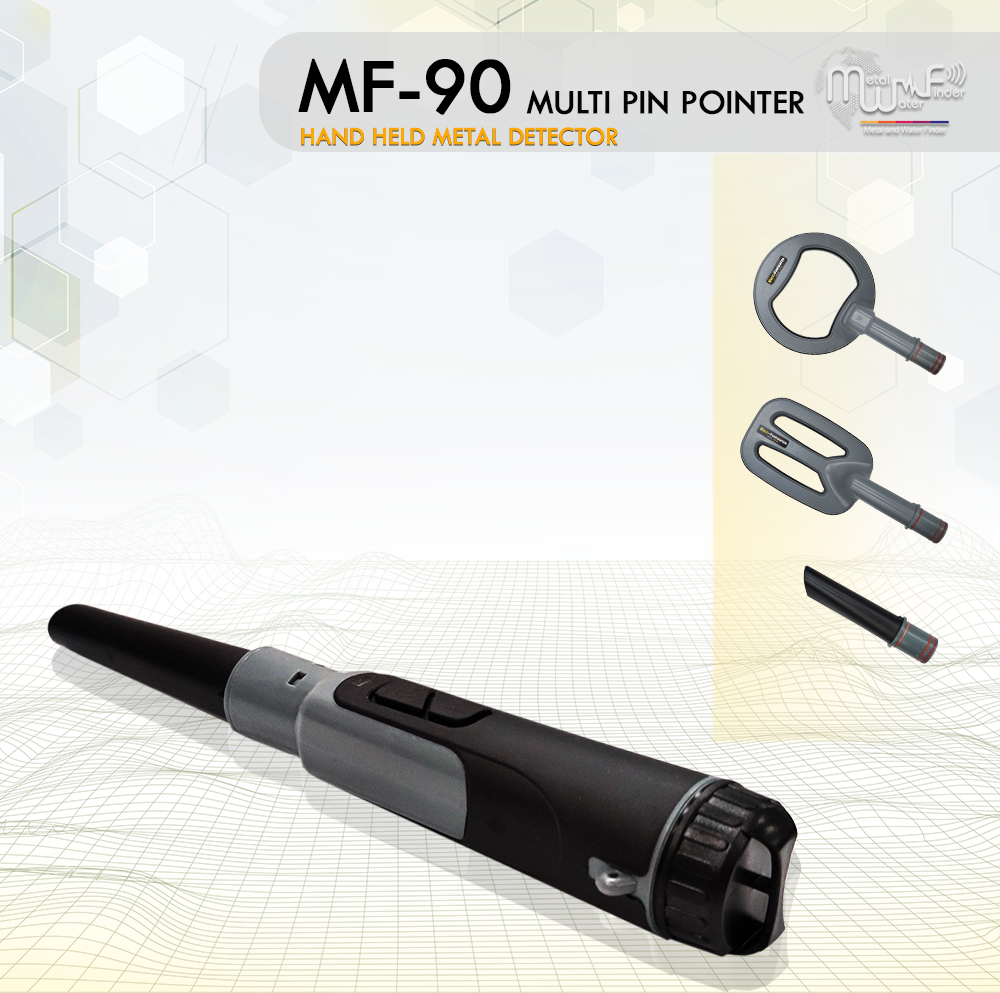

Parts & Accessories
- The main unit

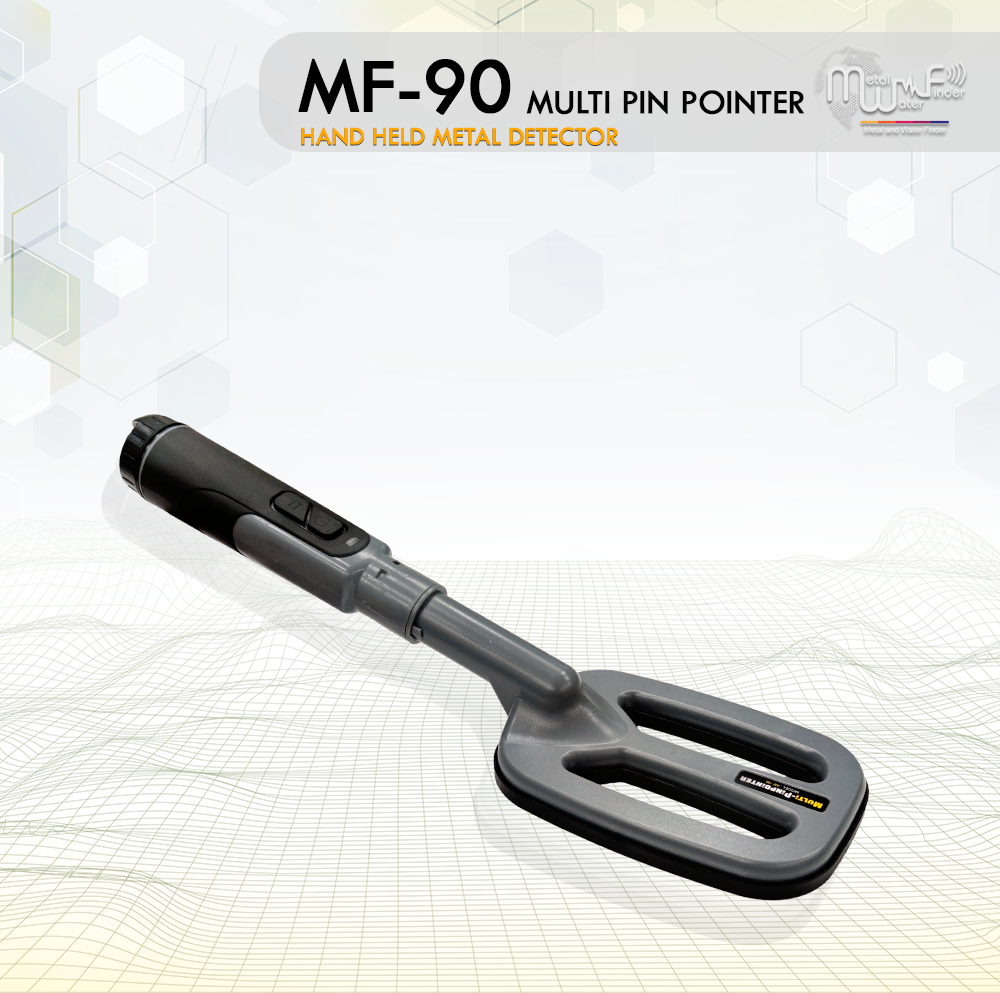

- the Square search coil.

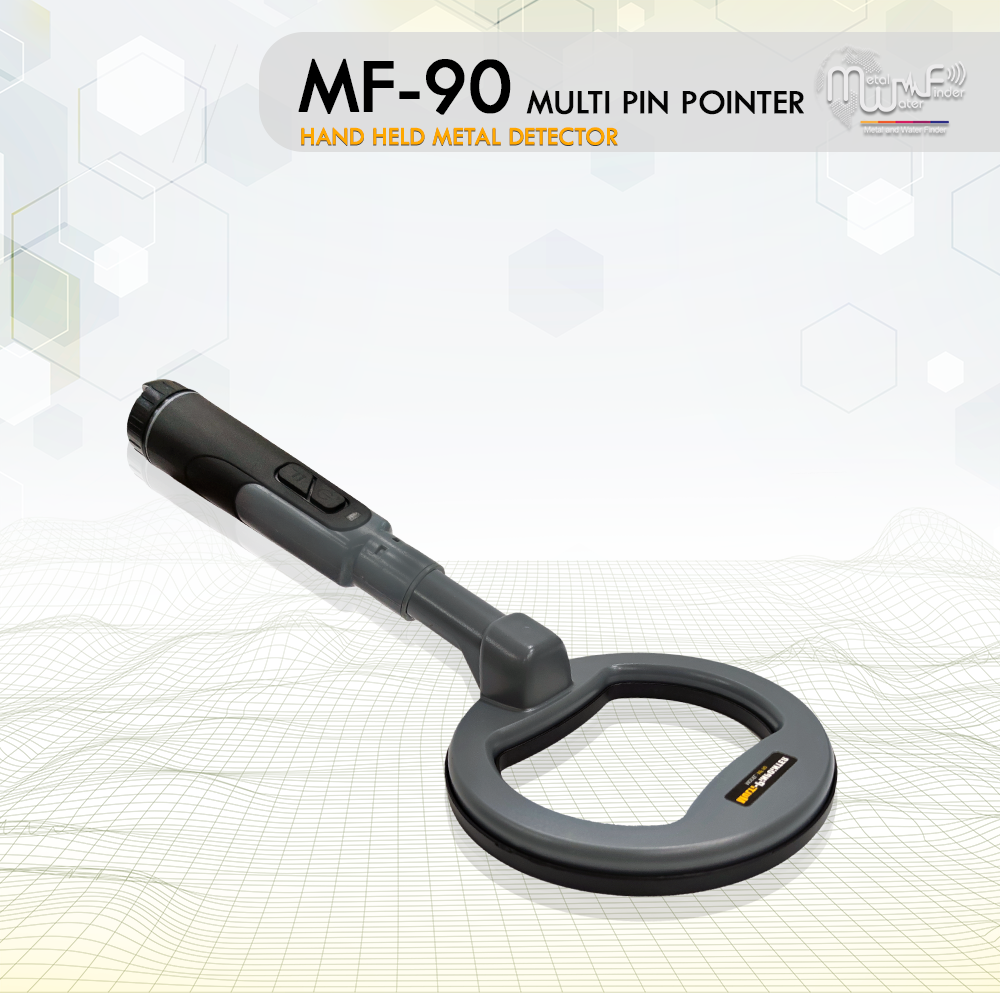

- The circular search coil
- Point search coil (point sensor)
- Flexible strap to bind the device
- Battery protection cover
- Device briefcase
- User’s Manual
- Warranty card
